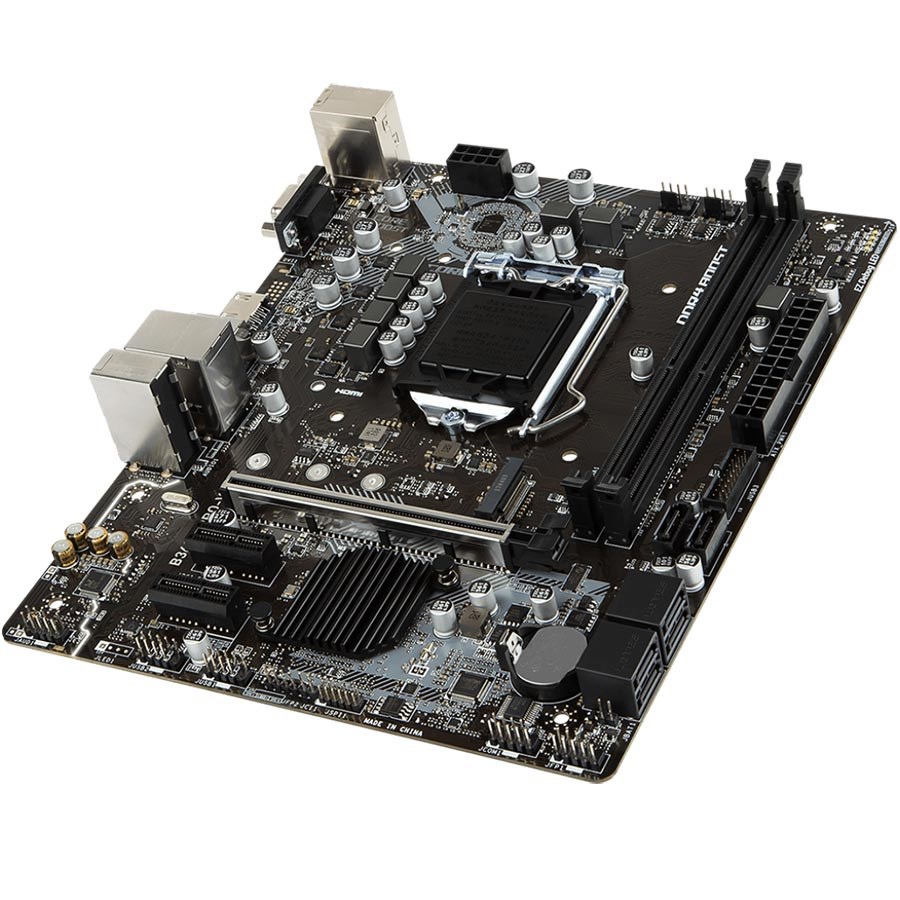

MSI B360M PRO-VH DDR4 DVI HDMI 16x Lga1151 mATX

MSI B360M PRO-VH DDR4 DVI HDMI 16x Lga1151 mATX

B360M PRO-VH

Supports 8th Gen Intel® Core™ / Pentium® Gold/ Celeron® Processors for LGA 1151 socket
Supports DDR4 Memory, up to 2666MHz
Audio Boost: Reward your ears with studio grade sound quality.
Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
EZ Debug LED: Easiest way to troubleshoot.
PCI-E Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.
X-Boost: Software that auto-detects and allows you to boost the performance of any storage, Optane or USB device.
Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.

Teknik Özellikler

PROCESSOR

Supports 8th Gen Intel^® Core™ processors, and Intel^® Pentium^® Gold and Celeron^® processors for Socket LGA1151

CHİPSET

Intel^® B360 Chipset

MEMORY

• 2 x DDR4 memory slots, support up to 32GB
  • Supports DDR4 2666/ 2400/ 2133 MHz
• Dual channel memory architecture
• Supports non-ECC, un-buffered memory
• Supports Intel^® Extreme Memory Profile (XMP)

SLOTS

• 1 x PCIe 3.0 x16 slot
• 2 x PCIe 3.0 x1 slots

ONBOARD GRAPHİCS

• 1 x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz
• 1 x HDMI™ port, supports a maximum resolution of 4096x2160@30Hz, 2560x1600@60Hz

STORAGE

Intel^® B360 Chipset

• 6 x SATA 6Gb/s ports
• 1 x M.2 slot (Key M)
  • Supports up to PCIe 3.0 x4 and SATA 6Gb/s
  • Supports 2242/ 2260/ 2280 storage devices
  • Intel^® Optane^™ Memory Ready¹

1. Before using Intel^® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

USB

Intel^® B360 Chipset

• 6x USB 3.1 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the back panel, 2 ports available through the internal USB connector)
• 6x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors)

AUDİO

Realtek^® ALC887 Codec

• 7.1-Channel High Definition Audio

LAN

• 1 x RTL8111H Gigabit LAN controller

INTERNAL CONNECTORS

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x USB 3.1 Gen1 connector1 (supports additional 2 USB 3.1 Gen1 ports)
• 6 x SATA 6Gb/s connectors
• 1 x Clear CMOS jumper
• 2 x Front panel connectors
• 1 x Serial port connector
• 1 x Chassis Intrusion connector
• 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1 x Front panel audio connector
• 1 x 4-pin CPU fan connector
• 1 x 4-pin system fan connector

BACK PANEL PORTS

• 1. PS/2 Combo Port
• 2. VGA Port
• 3. HDMI Port
• 4. USB 3.1 Gen1
• 5. LAN Port
• 6. HD Audio Connectors
• 7. USB 2.0 Port
• 8. USB 3.1 Gen1

DİMENSİONS

• 8.9 in. x 7.3 in. (22.6 cm x 18.5 cm)
• m-ATX Form Factor

MOUNTİNG

6 mounting holes

BOX CONTENT

1. MSI^® does not guarantee the risks or damages caused by changing the cover.
2. These pictures are for reference only and may vary without notice.

Garanti Süresi : 36 Ay

EAN Numarası: 4719072561567
