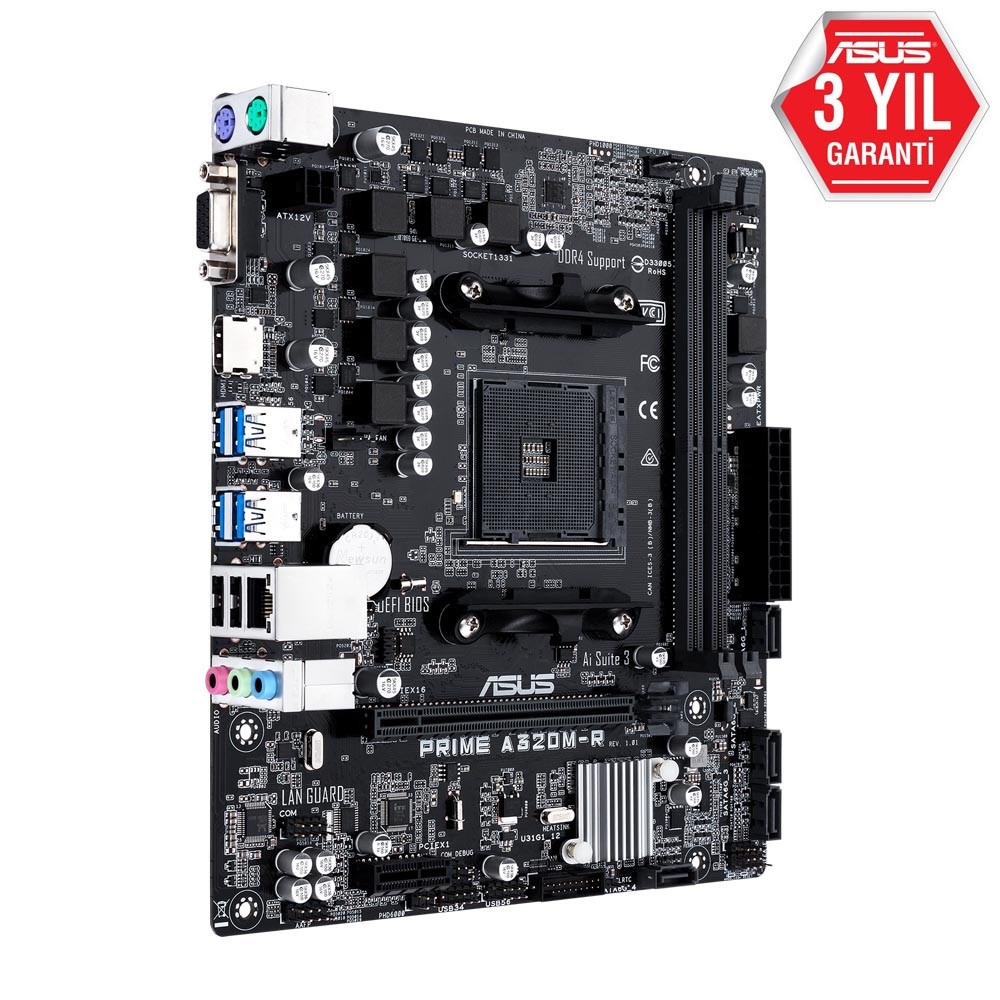

ASUS PRIME A320M-R-SI AMD A320 Soket AM4 DDR4 2933Hz (OC) VGA HDMI Anakart

ASUS PRIME A320M-R-SI AMD A320 Soket AM4 DDR4 2933Hz (OC) VGA HDMI Anakart

• İşlemci ModeliAMD
• İşlemci DesteğiAMD Ryzen
• YongasetiAMD A320
• Soket YapısıAM4
• Ram Kapasitesi32GB
• SATA1x SATA3
• RAIDRAID 0
• M.2Yok
• PCI Express 3.01xPCI-Ex 3.0
• PCI-E Slot1x PCI-Ex
• HDMIYok
• USB1 x USB 2.0
• Overclock Yok
• Wi-Fi Yok
• Kasa YapısıMini Tower (mATX)
• Garanti36 Ay Garanti
• CPU
  AMD AM4 Socket for AMD Ryzen™/7th Generation A-series/Athlon™ Processors
  Supports CPU up to 8 cores

• Chipset
  AMD A320
• Memory
  AMD Ryzen™ Processors
  2 x DIMM, Max. 32GB, DDR4 3200(O.C.)/2933(O.C.)/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory
  AMD 7th Generation A-series/Athlon™ Processors
  2 x DIMM, Max. 32GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory
  Dual Channel Memory Architecture
  * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
  * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
• Graphic
  Integrated AMD Radeon™ R Series Graphics in the 7th Generation A-Series APU *1
  Multi-VGA output support : HDMI/RGB ports
  - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
  - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
  Maximum shared memory of 2048 MB
• Expansion Slots
  AMD Ryzen™ Processors
  1 x PCIe 3.0/2.0 x16 (x16 mode)
  AMD 7th Generation A-series/Athlon™ Processors
  1 x PCIe 3.0/2.0 x16 (x8 mode)
  AMD A320 chipset
  2 x PCIe 2.0 x1
• Storage
  AMD A320 chipset :
  4 x SATA 6Gb/s port(s), gray,
  Support Raid 0, 1, 10
  AMD Ryzen™ Processors :
  1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
  AMD 7th Generation A-series/Athlon™ Processors :
  1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode)
• LAN
  Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)
• Audio
  Realtek® ALC887 8-Channel High Definition Audio CODEC
• USB Ports
  AMD Ryzen™/7th Generation A-series/Athlon™ Processors :
  4 x USB 3.0 port(s) (4 at back panel, blue)
  AMD A320 chipset :
  2 x USB 3.0 port(s) (2 at mid-board)
  AMD A320 chipset :
  6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board)
• Special Features
  ASUS 5X Protection III :
  - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
  - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
  - ASUS Overvoltage Protection: World-class circuit-protecting power design
  - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
  - ASUS DIGI+ VRM: 6 Phase digital power design
  ASUS Exclusive Features :
  - AI Suite 3
  - Ai Charger
  ASUS Quiet Thermal Solution :
  - Stylish Fanless Design Heat-sink solution
  - ASUS Fan Xpert
  ASUS EZ DIY :
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash 3
  - ASUS UEFI BIOS EZ Mode
  - Multi-language BIOS
  ASUS Q-Design :
  - ASUS Q-Slot
  - ASUS Q-DIMM
• Operating System Support
  Windows® 10 , 64bit
• Back I/O Ports
  1 x PS/2 keyboard (purple)
  1 x PS/2 mouse (green)
  1 x D-Sub
  1 x HDMI
  1 x LAN (RJ45) port(s)
  4 x USB 3.0 (blue)
  2 x USB 2.0
  3 x Audio jack(s)
• Internal I/O Ports
  1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
  2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
  1 x COM port(s) connector(s)
  4 x SATA 6Gb/s connector(s)
  1 x CPU Fan connector(s) (1 x 4 -pin)
  1 x Chassis Fan connector(s) (1 x 4 -pin)
  1 x S/PDIF out header(s)
  1 x 24-pin EATX Power connector(s)
  1 x 4-pin ATX 12V Power connector(s)
  1 x Front panel audio connector(s) (AAFP)
  1 x System panel(s)
  1 x Clear CMOS jumper(s)
  1 x Speaker connector
• Accessories
  User's manual
  I/O Shield
  2 x SATA 6Gb/s cable(s)
  1 x M.2 Screw Package
  1 x Supporting DVD
• BIOS
  128 Mb Flash ROM, UEFI AMI BIOS, PnP,WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control
• Operating System
  Windows® 10 64-bit
• Form Factor
  mATX Form Factor
  8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm )
• Note
  *1：AMD Ryzen™ Processor does not support

EAN Numarası: 4712900986068
