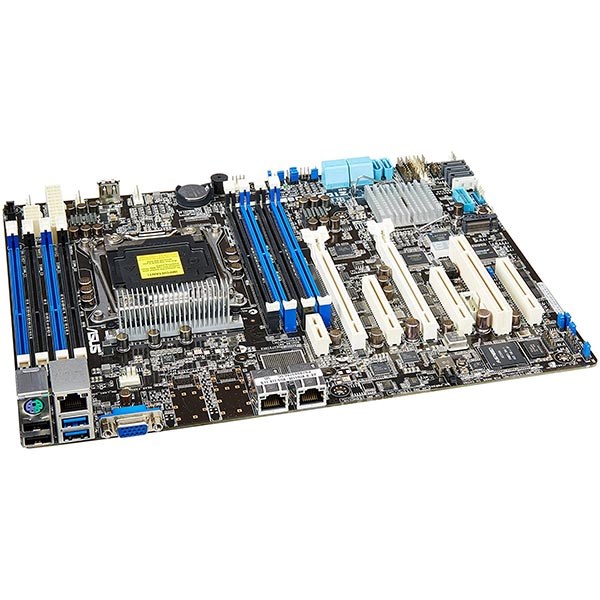

Asus Z10PA-U8 C612 DDR4 8x RDIMM Vga Xeon Lga2011-v3

Asus Z10PA-U8 C612 DDR4 8x RDIMM Vga Xeon Lga2011-v3

Z10PA-U8
Verimli Genişleme Yeteneğine Sahip ATX Boyutlu Sunucu Anakartı

Teknik özellikler

• Processor / System Bus
  1 x Socket R3 (LGA 2011-3; Square type 80x80mm)
  Intel^® Xeon^® processor E5-1600 v3 product family
  Intel^® Xeon^® processor E5-2600 v4 product family
  Intel^® Xeon^® processor E5-2600 v3 product family
• Core Logic
  Intel® C612 PCH
• Memory
  Total Slots : 8 (4-channel per CPU, 8 DIMM per CPU)
  Capacity : Maximum up to 512GB LRDIMM
  Memory Type :
  DDR4 2400 /2133 /1866*/1600/1333 RDIMM*
  DDR4 2400 /2133 /1866*/1600/1333 LRDIMM*
  Memory Size :
  32GB, 16GB, 8GB, 4GB RDIMM
  64GB, 32GB LRDIMM
• Expansion Slots
  Total Slot : 6
  Slot Location 1 : PCI-E x8 (Gen2 X4 Link)
  Slot Location 2 : PCI 32bit/33MHz
  Slot Location 3 : PCI-E x8 (Gen3 X8 Link)
  Slot Location 4 : PCI-E x16 (Gen3 X16 Link), Auto switch to x8 link if slot 3 is occupied
  Slot Location 5 : PCI-E x8 (Gen3 X8 Link)
  Slot Location 6 : PCI-E x16 (Gen3 X16 Link), Auto switch to x8 link if slot 5 is occupied
  Slot Location 7 : MIO Slot for Audio card
• Form Factor
  ATX (12"x9.6", 305mm x 244mm) *¹
• ASUS Features
  FAN speed control
  Rack Ready (Rack and Pedestal dual use)
  ASWM Enterprise
• Storage
  SATA Controller :
  Intel® C612
  10 x SATA3 6Gb/s ports
  or
  9 x SATA3 6Gb/s ports + 1 x M.2 connector *²
  Intel® Rapid Storage Technology Enterprise(RSTe) (For Windows Only)
  (Support Software RAID 0, 1, 5, 10 )
  LSI® MegaRAID (For Linux/Windows)
  (Support Software RAID 0, 1, 10 )
  SAS Controller :
  ASUS PIKE II 3008 8-port SAS HBA card(Optional)
  ASUS PIKE II 3108 8-port SAS HW RAID card(Optional)
• Networking
  2 x Intel® I210AT + 1 x Mgmt LAN
• Graphic
  Aspeed AST2400 with 32MB VRAM
• On Board I/O
  1 x TPM header
  1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector)
  1 x Management Connector , Onboard socket for optional management card
  1 x USB 3.0 pin header , Up to 2 Devices
  1 x USB 2.0 pin header , Up to 2 Devices
  6 x Fan Header , 4pin
  1 x SMBus
  1 x Chassis Intruder
  2 x Front LAN LED
  1 x Serial Port Header
  1 x M.2 Connector , NGFF Type : 2242, Capacity : 16~128GB
• Back I/O Ports
  2 x USB 3.0
  2 x USB 2.0
  1 x VGA Port
  2 x GbE LAN
  1 x Mgmt LAN
  1 x PS/2 KB/Mouse
• Management Solution
  ASWM Enterprise
  Optional ASMB8-iKVM for KVM-over-Internet
• Environment
  Operation temperature: 10? ~ 35?
  Non operation temperature: -40? ~ 70?
  Non operation humidity: 20% ~ 90% ( Non condensing)
• Weight
  Gift Box (1-in-1)
  Net Weight : 1.281 KG
  Gross Weight : 1.7 KG

  Bulk Pack (10-in-1)
  Net Weight : 9.79 KG
  Gross Weight : 12 KG
• Monitoring
  CPU Temperature
  Fan RPM
• Note
  * Please refer to www.asus.com for latest momory AVL update

  *1 EEB Mounting Hole Locations

  *2 9 x SATA3 6Gb/s ports + 1 x M.2 connector(SATA 6Gb/s)

Garanti Süresi : 24 Ay

EAN Numarası: 4716659859024
